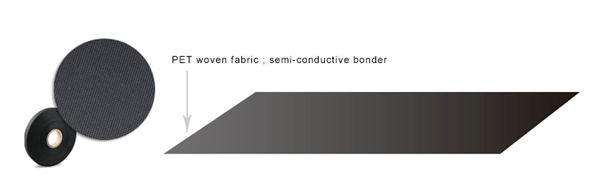

Description:Semi-conductive Toteron (Polyester Woven) tape
Composition:Polyester woven fabric
Semi-conductive bonder
Application:Separating, binding /Between Power cable components
Property |
Unit |
YCNH-15 |
YCNH-18 |
YCNH-20 |
Test method |
Thickness |
mm |
0.15±0.02 |
0.18±0.02 |
0.20±0.02 |
ISO 9073-2 |
Mass per unit area |
g/m2 |
110±10 |
150±10 |
170±10 |
ISO 9073-2 |
Tensile strength |
N/cm |
>150 |
>200 |
>250 |
ISO 9073-3 |
Elongation |
% |
³20 |
³20 |
³20 |
ISO 9073-3 |
Short term stability |
°C |
230 |
230 |
230 |
YS Method |
Long term stability |
°C |
145 |
145 |
145 |
IEC 216 |
Surface Resistance |
W |
£1000 |
£1000 |
£1000 |
DIN53482 |
Volume Resistance |
W.cm |
6 |
6 |
6 |
DIN54345 |
Moisture content |
% |
£6 |
£6 |
£6 |
ISO 287 |
