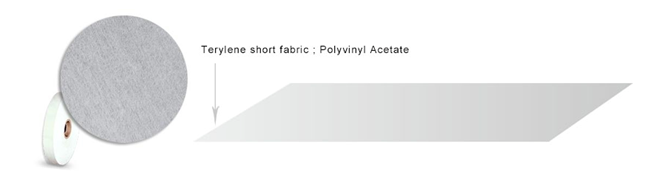

Description: Polyester Non-woven Fabric
Composition: 100% Polyester fiber
Application: Be used for making semi-conductive tapes and water-blocking tape , Separating, binding / Between cable components
Property | Unit | YWD-1-20 | YWD-1-25 | YWD-1-30 | YWD-1-40 | Test method |
Thickness | mm | 0.17±0.03 | 0.20±0.03 | 0.27±0.03 | 0.35±0.03 | ISO 9073-2 |
Mass per unit area | g/m2 | 20±3 | 25±3 | 30±4 | 40±5 | ISO 9073-1 |
Tensile strength | N/cm | ³16 | ³23 | ³26 | ³35 | ISO 9073-3 |
Elongation | % | ³10 | ³12 | ³12 | ³12 | ISO 9073-3 |
Property | Unit | YWD-10 | YWD-12 | YWD-16 | YWD-20 | Test method |
Thickness | mm | 0.10±0.03 | 0.12±0.03 | 0.16±0.03 | 0.20±0.03 | ISO 9073-2 |
Mass per unit area | g/m2 | 45±3 | 50±3 | 60±4 | 70±5 | ISO 9073-1 |
Tensile strength | N/cm | ³40 | ³43 | ³50 | ³55 | ISO 9073-3 |
Elongation | % | ³12 | ³12 | ³12 | ³12 | ISO 9073-3 |
Property | Unit | YWB-04 | YWB-05 | YWB-06 | YWB-09 | Test method |
Thickness | mm | 0.04±0.01 | 0.05±0.01 | 0.06±0.01 | 0.09±0.01 | ISO 9073-2 |
Mass per unit area | g/m2 | 20±2 | 25±3 | 30±3 | 40±3 | ISO 9073-1 |
Tensile strength | N/cm | ³20 | ³25 | ³28 | ³38 | ISO 9073-3 |
Elongation | % | ³10 | ³10 | ³12 | ³12 | ISO 9073-3 |
