Location: Home > PRODUCTS > Cable material > Semi-conductive Water-blocking Tape
Mail box：sales@cnystape.com
Address：No.217,Chong Qing Middle Road,Li Cang District,Qingdao,China

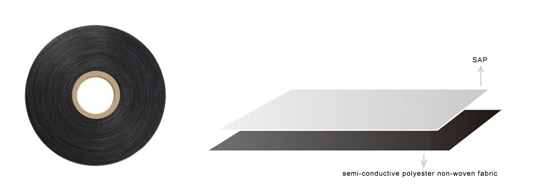

Description: Single-side Semi-conductive Water Blocking Tape
Composition: Polyester non-woven fabric, super absorbent resin, semi-conductive adhesive
Application: Be used under neutral screen wires and tape between cable components for water blocking, binding and shielding.
Technical Data
Property |
Unit |
Type |
Test Method |
||
YCWS-25 |
YCWS-30 |
YCWS-50 |
|||
Thickness |
mm |
0.25±0.04 |
0.30±0.04 |
0.50±0.05 |
ISO9073-2 |
Mass per unit area |
g/m2 |
120±20 |
140±10 |
180±20 |
ISO9073-1 |
Tensile strength |
N/cm |
≥40 |
≥40 |
≥40 |
ISO9073-3 |
Elongation |
% |
≥12 |
≥12 |
≥12 |
ISO9073-3 |
Surface resistance |
Ohm/□ |
≤1500 |
≤1500 |
≤1500 |
DIN53482 |
Volume resistance |
Ohm.cm |
≤106 |
≤106 |
≤106 |
DIN54345 |
Swelling speed |
mm/1’0 |
≥6 |
≥8 |
≥8 |
YS Method |
Swelling height |
mm/3’0 |
≥12 |
≥12 |
≥12 |
YS Method |
Short-term stability |
℃ |
230 |
230 |
230 |
YS Method |
Long-term stability |
℃ |
90 |
90 |
90 |
IEC216 |
Moisture content |
% |
≤9 |
≤9 |
≤9 |
ISO287 |
