Location: Home > PRODUCTS > Cable material > Non-conductive Water-blocking Tape
Mail box：sales@cnystape.com
Address：No.217,Chong Qing Middle Road,Li Cang District,Qingdao,China

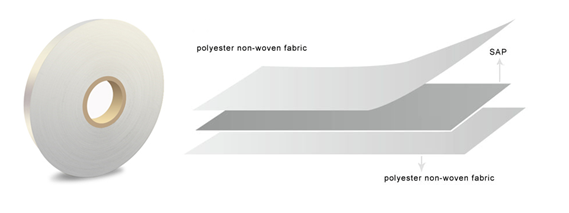

Description: Double-side Non-conductive Water Blocking Tape
Composition: Polyester non-woven fabric, super absorbent resin, Adhesive
Application: Be used for water-blocking in neutral screen cable, optical fiber cable, communication cable.
Technical Data
Property |
Unit |
Type |
Test Method |
|||
YNCW-20 |
YNCW-25 |
YNCW-30 |
YNCW-35 |
|||
Thickness |
mm |
0.2±0.03 |
0.25±0.03 |
0.30±0.03 |
0.35±0.04 |
ISO9073-2 |
Mass per unit area |
g/m2 |
80±10 |
90±10 |
100±10 |
120±10 |
ISO9073-1 |
Tensile strength |
N/cm |
≥25 |
≥35 |
≥45 |
≥45 |
ISO9073-3 |
Elongation |
% |
≥12 |
≥12 |
≥12 |
≥12 |
ISO9073-3 |
Swelling speed |
mm/1’00 |
≥5 |
≥6 |
≥6 |
≥8 |
YS Method |
Swelling height |
mm/3’00 |
≥10 |
≥12 |
≥12 |
≥12 |
YS Method |
Short-term stability |
℃ |
230 |
230 |
230 |
230 |
YS Method |
Long-term stability |
℃ |
90 |
90 |
90 |
90 |
IEC216 |
Moisture content |
% |
≤9 |
≤9 |
≤9 |
≤9 |
ISO287 |
